127505

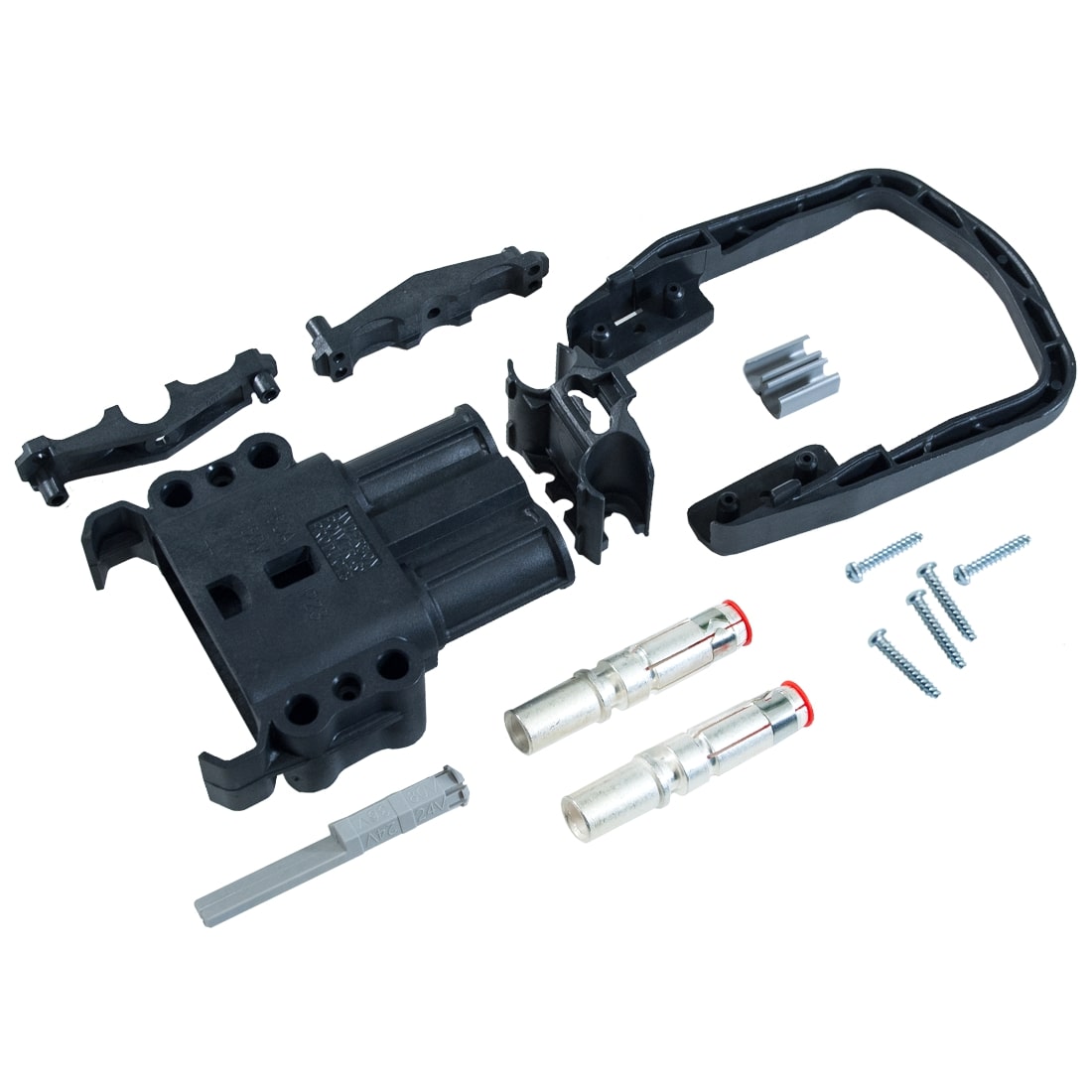

The DIN 160 Amp Female Connector Kit with Handle has a greater current-carrying capacity compared to standard SB® connectors.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

1

Features

DIN Connectors conform to specification DIN43589-1 except the cable barrel fits American Wire Gauge (AWG) cable instead of metric cable, Hexagon voltage key for 24, 365, 48, 72, 80, and 96 volt systems, Ideal for North American fast charging systems because DIN connectors have greater current carrying capacity compared with standard SB® connectors, In addition to two large round contacts, up to four auxiliary contacts can be used for battery monitoring and charger applications, Kits include connectors, housing, and auxiliaries (two 14/18 upper and two 14/18 lower auxiliaries)

Amps

160

Application

Industrial

Includes

(4) Auxiliary Tips, Handle

Gauge

2

Pack Type

Bag

SAE

No

Subject to Prop 65

No

Temperature Range (°C)

-20 to 105°C

Temperature Range (°F)

-4 to 221°F

UL / CSA

No

Works With

DIN

Brand

Not branded

Color

Black

Product Length

2.25 in

Product Width

2.80 in

Product Type

Female 160 Amp Connector Kit

RoHS Compliant

Yes

SKU

127505, 127505-001

Product Height

2.50 in

Product Weight

1.30 lb

Country of Origin

USA
