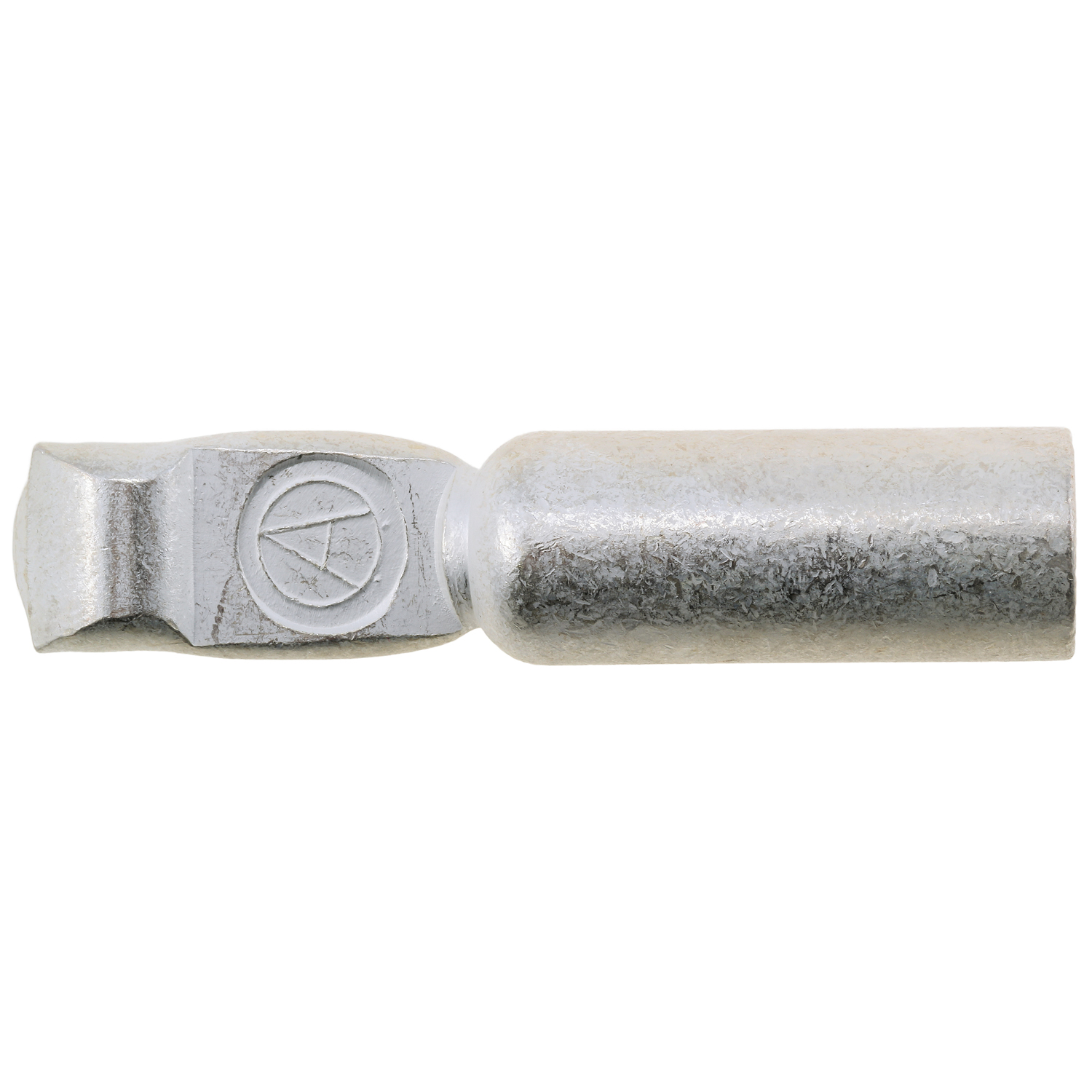

123153
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 10 |
|---|---|
| Features | Excellent for general commercial and industrial applications, Final assemblies meet UL and CSA specifications, when all components are made and crimped with a UL listed tooll, Housings lock together to create custom solutions, Solid copper contact, Use a crimp tool for solid dependable crimps |
| Application | General Commercial and Industrial Applications |
| Color | Silver |
| Gauge | 4 |
| Maximum Voltage | 600 V |
| Plating Material | Silver |
| Product Length | 2.35 in |
| Product Width | 0.50 in |
| Product Type | Contact |
| RoHS Compliant | Yes |
| SAE | No |
| Subject to Prop 65 | No |
| Temperature Range (°C) | -20 to 105°C |
| Temperature Range (°F) | -4 to 221°F |
| Termination Material | Silver Plated Copper |
| Termination Method | Crimp |
| UL / CSA | No |
| Works With | SB |
| Amps | 180 A |
| Brand | PowerPole |
| Pack Type | Bag |
| SKU | 123153, 123153-010 |
| Product Height | 0.50 in |
| Product Weight | 0.09 lb |
| Tristrip Statement | Strip 1.00" (26mm) minimum of insulation from end, fully insert in connector & crimp at both locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 26 mm (1.00 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
