122504A

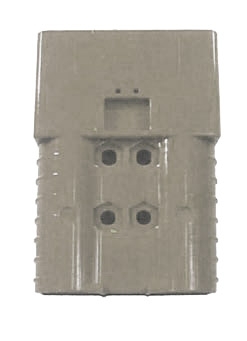

The SBX® Connector Housing is color-coded for easy voltage identification.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification Details

Parts per Unit

1, 10

Features

Ideal for North American fast charging systems because, in addition to large blade contacts, two auxiliary contacts can be used for battery monitoring and charger communications, SBX® housings are genderless, reducing the number of stocked parts, SBX®s have a single-piece housing that requires no assembly, saving time

Product Height

1.00 in

SKU

122504-001, 122504-010, 122504A

RoHS Compliant

Yes

Product Type

Housing

Product Width

2.80 in

Product Length

5.75 in

Color

Gray

Brand

SBX

Works With

SBX

UL / CSA

No

Termination Material

Stainless Steel

Temperature Range (°F)

-4 to 221°F

Temperature Range (°C)

-20 to 105°C

Subject to Prop 65

No

SAE

No

Pack Type

Bag

Maximum Voltage

600 V

Gauge

1/0, 2, 4

Housing Material

PBT

Application

Industrial

Amps

175 A

Product Weight

0.18 lb

Country of Origin

USA
