102806

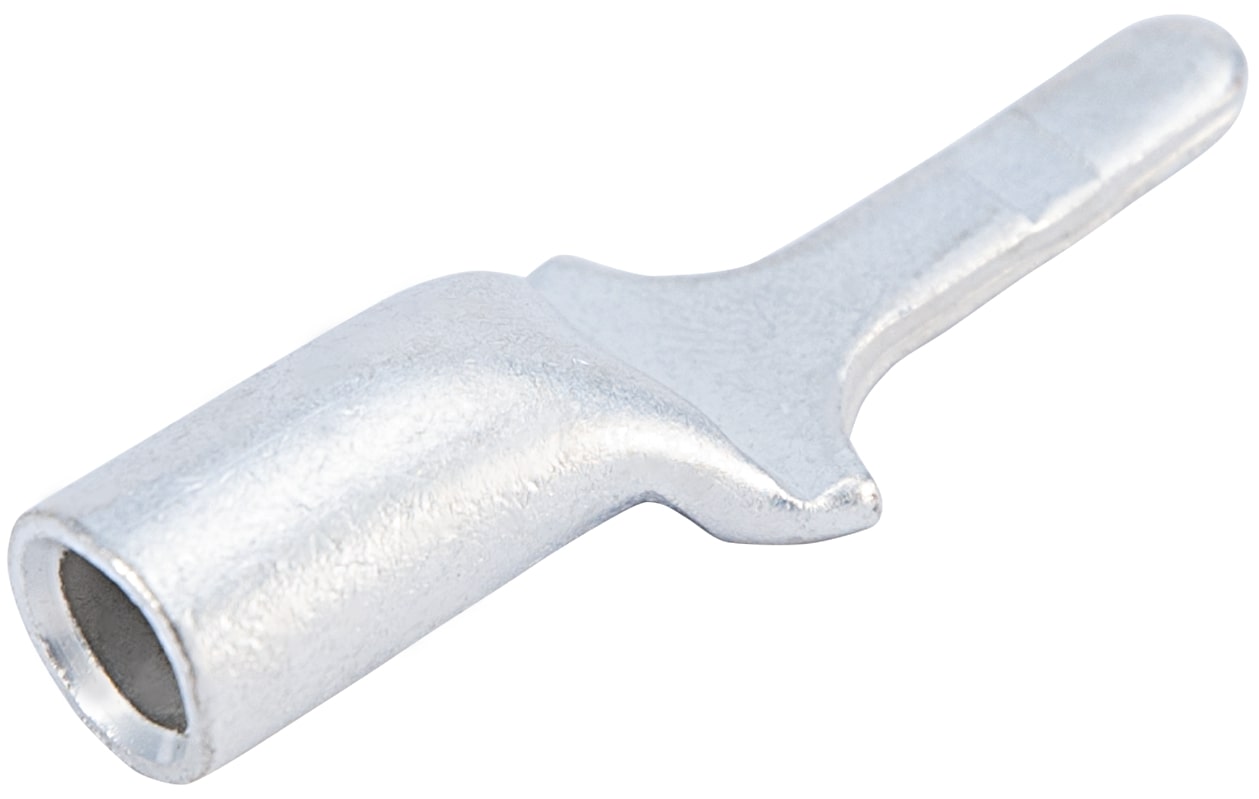

Our MagnaLug™ Inverter Connector can be crimped or soldered which makes it a perfect fit for most inverter connections with screw tab mounting holes.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Downloads
102806 INFO
Last Updated: 06/09/2022
Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Can be crimped or soldered, Perfect fit for most inverter connections with screw tab mounting holes, Permanent connection, prevents arcing and shorting, Unique self-centering design |
| Product Height | 0.35 in |
| SKU | 102806, 102806-005, 102806-050 |
| RoHS Compliant | Yes |
| Product Width | 0.21 in |
| Product Length | 1.91 in |
| Color | Silver |
| Brand | MagnaLug |
| Works With | Inverters |
| UL / CSA | No |
| Thickness | 0.15 in |
| Termination Method | Crimp |
| Termination Material | Copper |
| Tab Width | 0.21 in |
| Tab Length | 0.67 in |
| Subject to Prop 65 | No |
| SAE | No |
| Plating Material | Tin |
| Pack Type | Bag |
| Gauge | 6 |
| Application | Inverters |
| Product Weight | 0.039 lb |
| Country of Origin | USA |
