165281

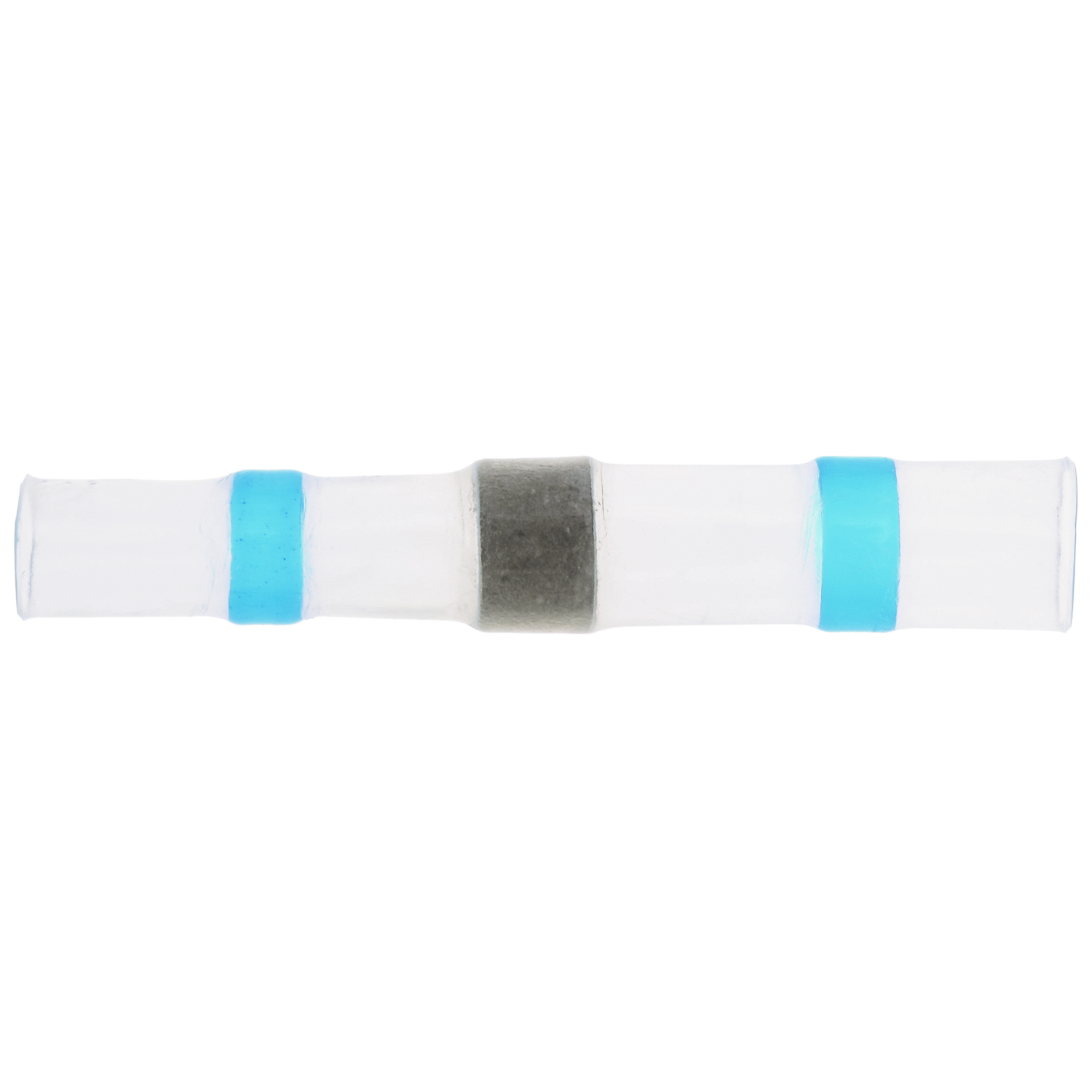

Our Fusion® Solder Heat Shrink Butt Connector includes the solder and flux pre-loaded in the barrel.
WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specification Details
| Parts per Unit | 10, 100, 25, 50 |
|---|---|
| Features | Controlled soldering combined with heat-shrink tubing in one step, Transparent sleeves with color-coded sealing rings easy to inspect |
| RoHS Compliant | Yes |
| Product Type | Fusion Solder Butt Connector |
| Product Width | 0.29 in |
| Product Length | 1.50 in |
| Color | Blue |
| Brand | Not branded |
| Works With | Primary Wire |
| UL / CSA | Yes |
| Termination Method | Solder |
| Termination Material | Lead Free Solder |
| Subject to Prop 65 | No |
| SAE | No |
| Pack Type | Bag |
| Maximum Voltage | 600 V |
| Insulation Material | Polyolefin |
| Insulation Color | Blue |
| Gauge | 14, 16 |
| Application | General Purpose |
| SKU | 165281, 165281-025, 165281-050, 165281-100, 165281-2010 |
| Country of Origin | China |
